> Bonomi 8E864LF 250N 2-Way Direct Mount Brass Full Port 600 WOG 150 WSP Ball Valve

Bonomi 8E864LF 250N 2-Way Direct Mount Brass Full Port 600 WOG 150 WSP Ball Valve

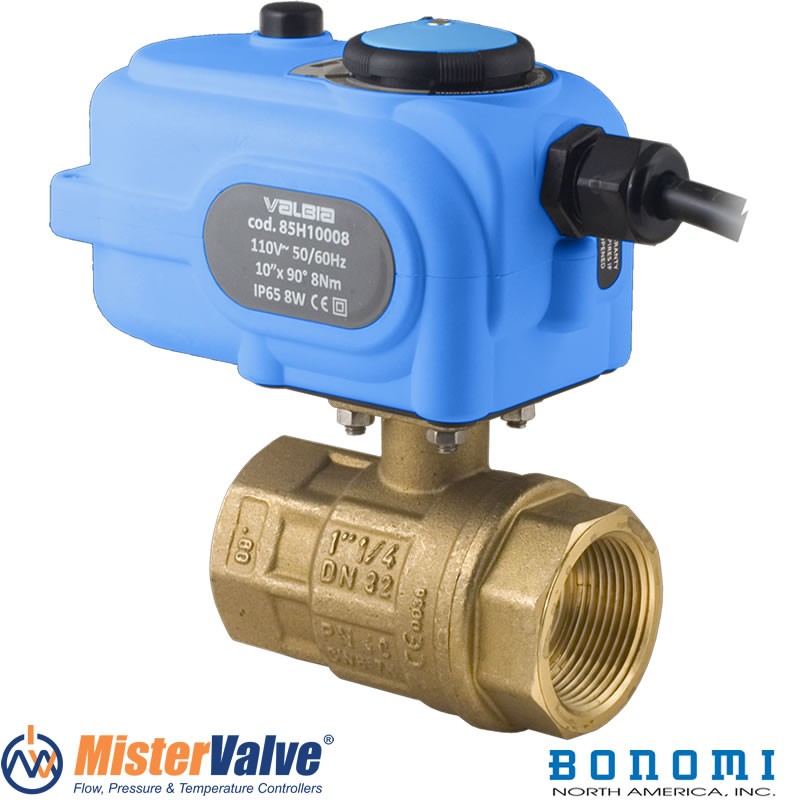

Bonomi 8E864 250N 2-Way Direct Mount Brass Full Port 600 WOG 150 WSP Ball Valve View larger

Model 8E864LF  By Bonomi

The Bonomi 8E864LF  is a 250NLF 2-way Direct Mount, Full Port Lead-Free Brass Ball Valve with VB010 Electric Actuator, available from Sizes 1/2” to 1 1/4”

Typically ships within 1 to 2 business days

Free Shipping  Price Match Guarantee

This product is no longer in stock

$201.87

Add to wishlist

Paypal Credit Pay over Time

Security Guaranteed

Volume discounts

Quantity Discount (Each) You Save
2 0.02% At least $0.08
6 0.03% At least $0.36
11 0.05% At least $1.11

The Bonomi 8E064LF (lead free) is a 2-way Direct Mount Full Port brass ball valve  featuring an electric actuator available in the following voltage 100-240V AC or 24V AC/DC and is available in 6 sizes ranging from 1/2 inch to 1 1/4 inches.

The Bonomi 8E864LF series is ideally suited for commercial and light industrial applications, where space and reliability are a premium. This flexable, hardened plastic series is dent resistant, and can be wired in either 2-point or 3-point control mode.

The IP65 housing is resistant to dusty areas, and in areas where water may be sprayed. Quick and painless wiring and installation is guaranteed by a 30” pigtail, where the housing remains untouched. Due to it’s light weight design, the 8E864LF (unlike other electric actuated packages), can be installed in any position, offering lasting performance and quiet operation.

The Bonomi Valves are legendary for quality and reliability.

Bonomi 8E864LF Actuator Features

  • 24V AC/DC and 100-240V AC Models Available
  • ISO 5211, F03/F05 base with 11mm female drive
  • 75% Duty Cycle, with 6 second cycle time
  • One auxiliary SPDT contact on closed
  • Anti-Condensation heater, (when red wire is connected to power)
  • High-Strength, Impact Resistant IP65 Technopolymer Housing
  • Quiet operation with LED light in the open position
  • Output Torque 89 in/Lbs.
  • Temperature Range 23°F to 131°F
  • 30” pigtail for quick installation
  • Country of Origin: Italy

Bonomi 8E864LF Valve Features

  • Lead Free Brass, (no silicon or bismuth adders)
  • Full port sizes: 1/2", 3/4", 1", 1 1/4"
  • ISO 5211 pad and square stem
  • Pressure rating to 600 WOG
  • Low torque design with back up o-ring seats
  • Double o-ring stem seal design for extended cycle life
  • 100% electronically tested in the open and closed position @80Ps
  • Optional: press-fit end connections, (specify 8E864LFP series)

What's included with the Bonomi 8E864LF Ball Valve

  • Free Shipping
  • 1 Year Warranty

Technical

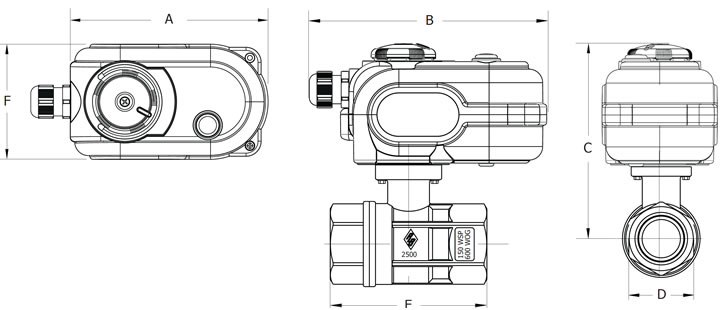

Bonomi 8E864 - brass Ball Valve with Double Acting Actuator
Size A B C D E F Cv Break Torque lbs PSI LBS
1/2” 5.11 6.14 4.43 1.06 2.64 2.95 16.3 53.10 600 3.66
3/4" 5.11 6.14 4.51 1.26 3.00 2.95 2.95 53.10 600 3.91
1" 5.11 6.14 4.94 1.61 3.35 2.95 43.0 53.10 600 4.55
1 1/4” 5.11 6.14 5.08 1.97 3.66 2.95 89.0 53.10 600 5.14
    Process pressure 600 psi 5.14 lbs.
    Valve Connection Type Threaded (FNPT x FNPT)
    Connection Size 1/2", 3/4", 1", 1 1/4"
    Reference Port Full
    Valve Body Brass
    Stem Type Blowout Proof
    Actuator Type Double Acting electric actuated
    Fail Position None (Fail in Place)
    Seat Material PTFE
