Bonomi 171N Full port brass ball valve FNPT threaded with lever handle. 1/4” to 4”.

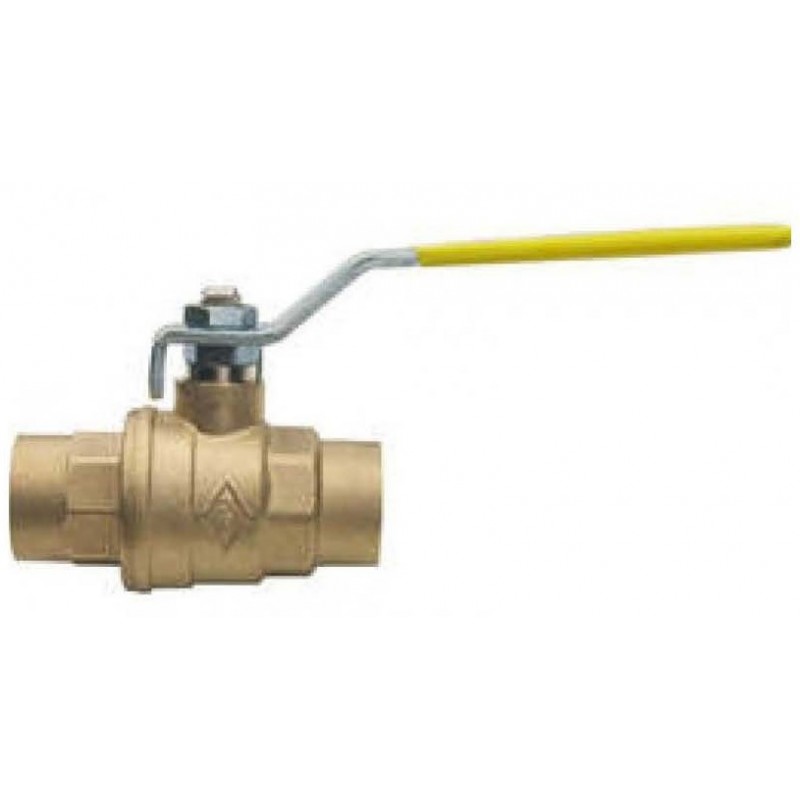

Bonomi 8E064-00 2W DM Brass Valve FP on/off Electric P. Actuator 1/4"- 4" View larger

Model Bonomi 171N  By Bonomi

The Bonomi 171N Full port brass ball valve FNPT threaded with lever handle. 1/4” to 4”.

Typically ships within 1 to 2 business days

Free Shipping  Price Match Guarantee

$12.00

Add to wishlist

Paypal Credit Pay over Time

Security Guaranteed

Volume discounts

Quantity Discount (Each) You Save
6 5% At least $3.60
11 10% At least $13.20

The Bonomi 171N is a Full port brass ball valve FNPT threaded with lever handle is a direct mount ball brass ball valve featuring. The PTFE seat material with an O-ring backing allows for low operating torque.The valve has a full port, a blowout proof stem along with a electric actuator. The Bonomi Valves are legendary for quality and reliability.

Bonomi 171N Full port brass ball valve Features

  • Pressure Rating: 600PSI WOG - 150 WSP - 1/4” to 4”.
  • Full port sizes: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
  • Maximum Pressure: 1000 psi / 150 psi steam
  • Sized For: 80 PSI of available air pressure
  • 100% electronically tested in the open and closed position at 80 psi
  • Connection Type: Threaded (FNPT x FNPT)
  • Body: Brass
  • Seat: P.T.F.E. seats with O-ring backing for low operating torque
  • P.T.F.E. seals and double O-ring stem packing
  • Ball: Chrome-Plated Brass
  • Max Process Temperature: -4° F to 366° F
  • Stem: Brass, Blowout Proof
  • Country of Origin: Italy

What's included with the Bonomi 171N Full port brass ball valve

  • Free Shipping
  • 1 Year Warranty

Technical

Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
A .250 .375 .500 .750 1.00 1.25 1.50 2.00 2.50 3.00 4.00
B 7.51 7.51 7.51 7.72 8.33 8.65 11.36 12.08 14.20 14.99 16.9
C 6.85 6.85 6.85 6.93 7.36 7.50 9.92 10.28 11.94 12.31 13.73
D 4.84 4.84 4.84 4.84 4.84 4.84 6.18 6.18 7.28 7.28 8.31
E 6.41 6.41 6.41 6.41 6.41 6.41 7.50 7.50 8.43 8.43 9.33
F 1.67 1.67 1.67 1.67 1.67 1.67 2.38 2.38 2.66 2.66 3.31
G 4.74 4.74 4.74 4.74 4.74 4.74 5.12 5.12 5.77 5.77 6.02
H 2.64 2.64 2.64 3.00 3.35 3.66 4.15 4.80 6.10 6.89 8.03
Actuator VB015 VB015 VB015 VB015 VB015 VB015 VB030 VB030 VB060 VB060 VB110

    Process pressure Rating: 1000 psi / 150 psi steam
    Valve Connection Type Threaded (FNPT x FNPT)
    Connection Size 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3",4"
    Reference Port Full
    Valve Body Brass
    Stem Type Blowout Proof
    Seat Material PTFE
